Furitek Torpedo Axial Capra Brushless Power System

Unleash Capra Power Furitek Torpedo Brushless System Ready To Conquer

Unleash your inner wanderer with this vintage-inspired marvel a treasure waiting to spark joy and ignite your next adventure—its rugged charm whispers tales of sun-drenched landscapes and spontaneous escapades get ready to turn heads and collect unforgettable moments

$67.50 $134.99

num:

description

Details:

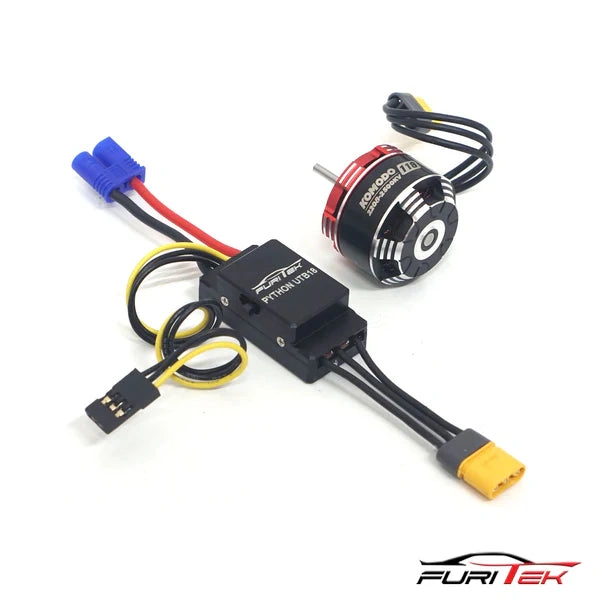

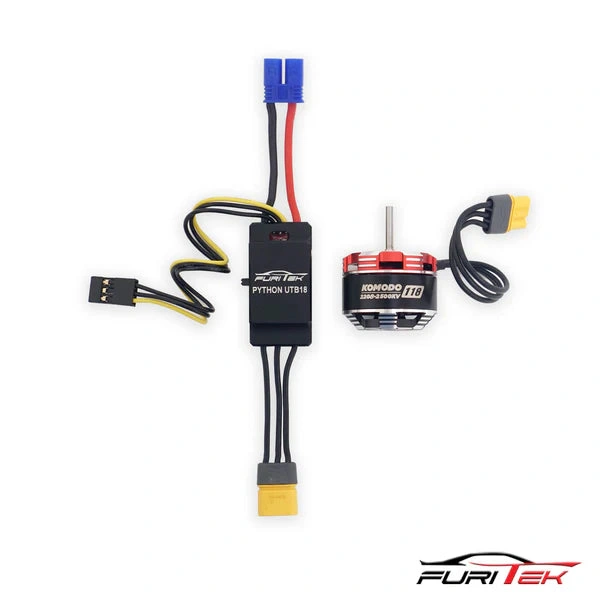

The Furitek flagship system, the TORPEDO for SCX24 is now available for the AXIAL UTB18 Capra owners. This combo includes a 40A/70A Python UTB18 esc and a Komodo 2208-2500kv brushless motor with everything plug and play, ready to install on the Axial UTB18 Capra without the need for soldering or changing connectors.
Super smooth, high torque and easily programmable on smartphone app, this FOC technology esc will bring your Axial UTB18 Capra to the next level of performance.

Features:
14 Pole 12 Slot hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes effeciency
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency.
Japaneses NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

Motor Specifications:

- Motor KOMODO118 2208-2500
- KV (RPM/Volt) 2500 kv
- No-load Current(@10v) 1.5A
- Watt 270W
- Battery 2-3S
- Resistance 0.06 ohm
- Max Current 25A
- Slot/Pole 12S14P
- Motor Size Ø 28 * 23mm
- Stator Size 2204
- Shaft/extend Length (mm) Ø 2.3 * 14mm
- Weight oz (gr) 13.93 oz (39.5 gr)
